Morningside Heights: History is in the Lay of the Land

The last post, Why the West Side is Different, talked about Morningside Heights as an impediment to west side traffic, a virtual “island in the air.” This post will explore more of the plateau, its terrain, its major tenants through history, and what can be seen today in the streets and buildings that reveal its past.

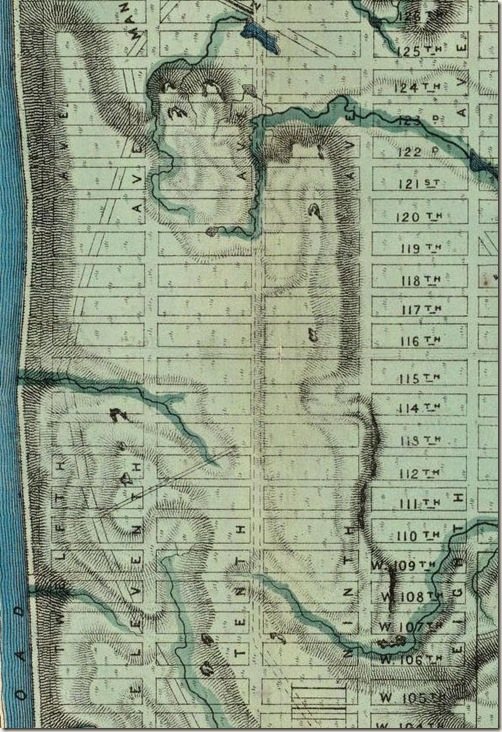

Below is Morningside Heights on the Viele map with the “pure grid” superimposed over the terrain—the oldest and (proposed) newest features of the area when the map was drawn up in 1865.  But at the time, only the Bloomingdale Road existed, and the narrow lane branching off at 111th Street.  It’s the nonconformist road to the left.

According to the Encyclopedia of New York City, the Bloomingdale Road “opened in 1703 and ran from what is now 23rd Street to the northern  end of Bloomingdale Village, near what is now 114th Street. In 1795 the road was extended north to 147th Street and linked to the old Kingsbridge Road."

So from 1703 until 1795, the Bloomingdale Road ended at the bend in the road at 115th Street, just before the river.  The narrow road that branches off at 111th Street seems to have been a dry passage up to the plateau.

AAA
courtesy of kottke.org

And the bend in the road is still visible today!

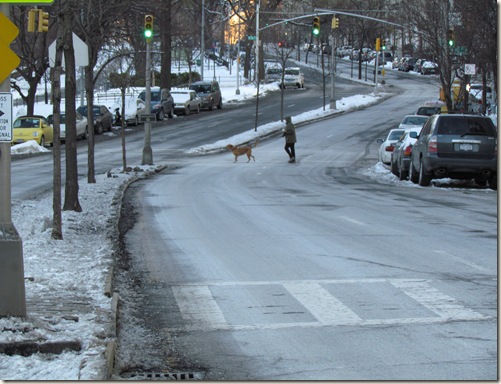

This is 114th Street and Riverside Drive looking north; dog and walker are crossing Broadway at 115th Street (toward the Hudson).  Not only can you see the bend in the road, there’s a slight dip where the river crossed through!   Beyond the third traffic light, at 116th Street, the road follows the “new” orientation of Riverside Drive.

IMG_1575

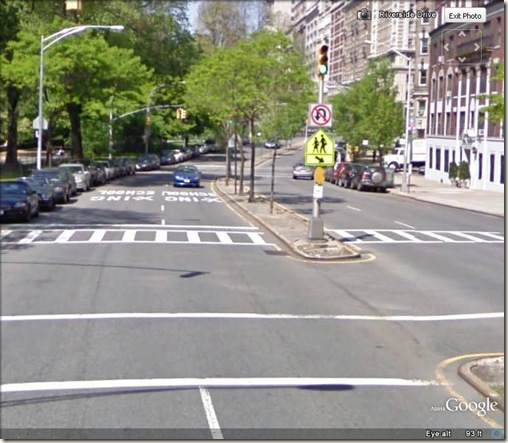

GoogleEarth shows it even better.  We’ll revisit this spot later.

bloomingdale @ 115

Much of the buildable land on Morningside Heights is arranged in a diagonal.  Below, Grant’s Tomb, Riverside Church and a few other tenants occupy the upper left corner.  The middle rectangle is the footprint of Columbia University, and the lower right is the property of St. John the Divine, situated on a slightly lower plateau.  (Imagine the boxes arranged diagonally the other way and all the hash marks that would be in the boundaries.)

Final 111

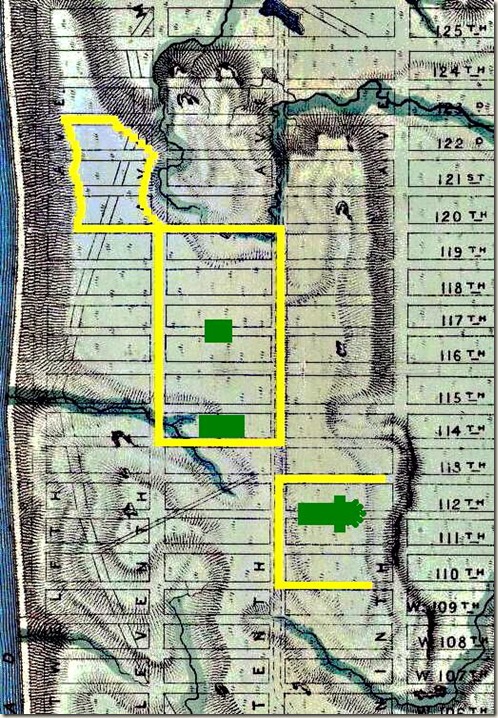

The green boxes are Low Library (directly over 117th Street), Butler Library (on the north side of 114th Street), and St. John the Divine (directly over 112th Street).

If you’re familiar with the area, follow Broadway (Eleventh Avenue) up to 121st Street and you can see where the ground drops away and the 1 train emerges out of the north side of the plateau.

Let’s look at the topography from street level.

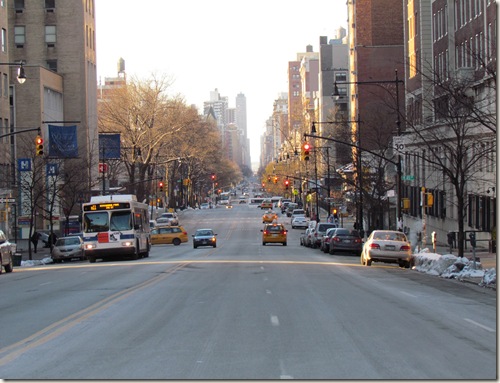

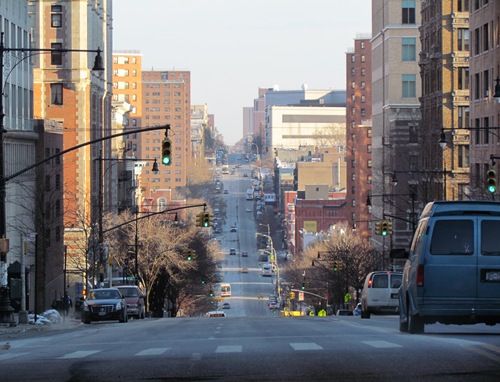

This is Amsterdam Avenue (Tenth on the Viele map) at 117th Street looking south, Columbia is on the right.  117th Street is a high ridge across the center plateau.  In the middle distance you can see the lower plateau of St. John the Divine.  The bus crossing way up ahead is on 110th Street, the south boundary of Morningside Heights.

IMG_1588

On the other side of campus, Broadway, you can see the same undulation in the road.  The south boundary of Morningside Heights is beyond that last bump.

IMG_1619

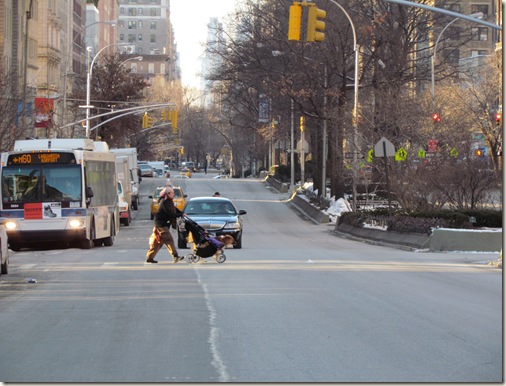

Back on Amsterdam, 117th Street looking the other way.  You can see why this area was avoided in the days of horse and foot travel.

IMG_1590

Zooming in is even more dramatic…

IMG_1594

The hill on Broadway is best seen in this old photo. 117th Street is at the end of the first traffic island (the one with the subway station in the middle of Broadway). The first building on the right is Lewisohn, the Mathematics Building is north of it on Broadway.  In between them is where 117th would run if it crossed campus, the apex.

symp 11

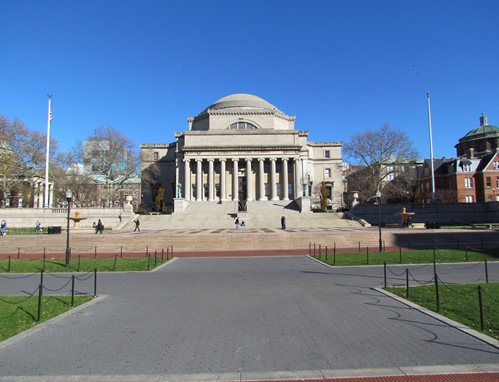

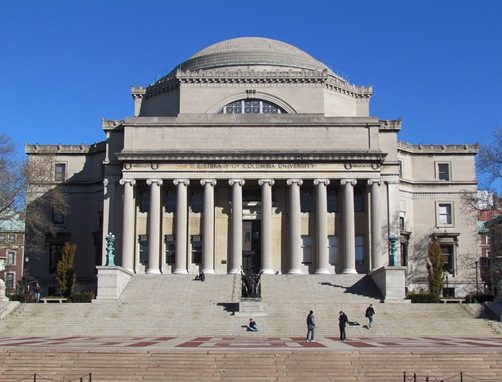

Exactly where 117th Street would be, squarely on the apex of the central plateau, sits Low Library.

IMG_0555

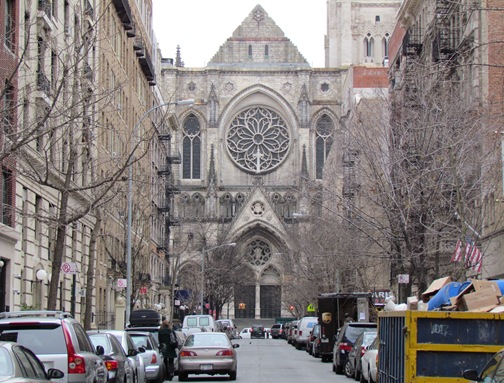

And here’s St. John the Divine, on the lower plateau.  This view is looking east along 112th Street, from Broadway to Amsterdam.

IMG_0942

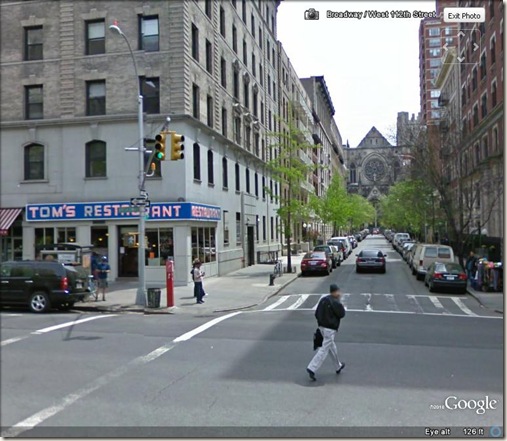

For Seinfeld fans…

Toms Restaurant

But these weren’t the first institutions to occupy the choice real estate of Morningside Heights. Before Low Library was built on the high center point, the Bloomingdale Insane Asylum opened its first building in 1821 on the exact same spot.  It would literally be under the rotunda of Low if it were standing today.  You can see the trees in the back appear to descend down the hill.

bloomingdale asylum ii

The Bloomingdale Insane Asylum was joined in 1843 by the Leake and Watts Orphanage, which moved onto the lower plateau of today’s St. John the Divine.  For nearly 50 years the two neighbors enjoyed quiet, woodsy grounds. The therapeutic gardens of the insane asylum were located on the lower half of Columbia University, between 114th – 116th Streets.

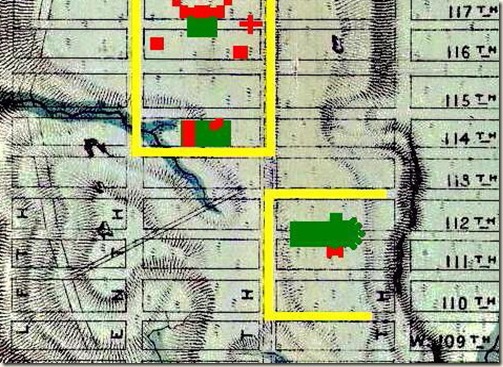

Below are the buildings of both institutions, superimposed on the later ones.

Final 11111

A few of the buildings are…
The insane asylum’s first building is directly over Low Library.  Men’s and women’s wings were added within a few years of the first building.
Macy Villa (a “men’s department”) sits directly on 116th Street.
The Superintendent’s House is the building closest to Broadway (Eleventh Avenue).
The conservatory is the cross-shaped building on 117th Street.

The barn and stables sit over the left side of Butler Library, in the therapeutic gardens.

The gymnasium and bowling alley sit on the right side of Butler, also in the gardens.

The orphanage building sits at the south crossing of St. John the Divine.
A single structure from both institutions survive today.

For context, the building to the far right is Macy Villa.
IMG_0554

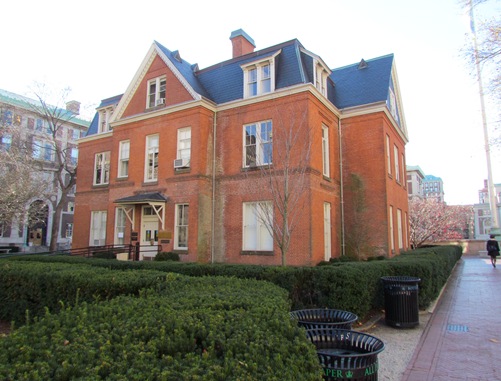

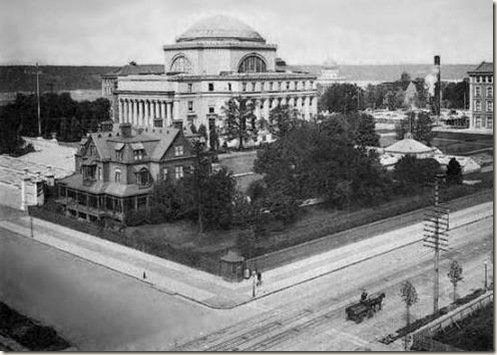

 Today it is Buell Hall on the Columbia campus.

IMG_0560

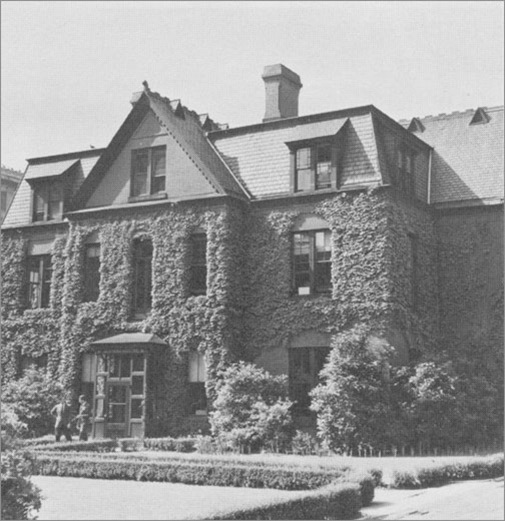

Macy Villa’s original location was on 116th Street.  It was moved back to build Kent Hall, its beautiful porches removed in the process.  It was built as a residence for wealthy male patients and was the last structure built on asylum grounds, in 1885—just 10 years younger than Low!  You can see the conservatory to the right, nestled in the trees where St. Paul’s Chapel will eventually be.  Also, Grant’s Tomb (1897) is visible in the distance.

OldBuellii

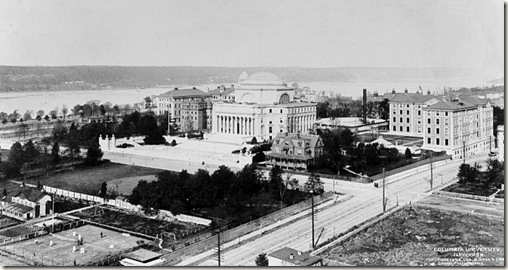

The gymnasium and bowling alley are in the lower left.

Buell hall

The insane asylum’s therapeutic gardens (not owned by Columbia yet).  The shrubby boundary in the foreground is 114th Street, the eventual south border of Columbia.  The gymnasium and bowling alley are to the right and Macy Villa is in the back, blending in a bit.

symp2

The photos above were taken sometime around 1900-1910. I’m not sure of the date of the picture below, but it was after the building was moved, since its porches are gone.  What’s remarkable is all the ivy—it grew in just a few decades—1920s?

macy villa

The other survivor from the Bloomingdale Heights days (as it was called in the 1800s) is the Leake and Watts Orphanage Asylum.  Along the south side of the Cathedral you can see the 1843 Greek Revival building to the right of the fountain.

 IMG_1577i

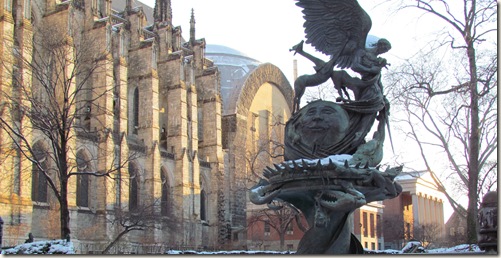

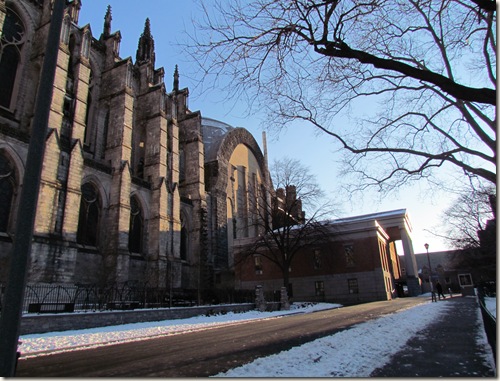

Usually Greek Revival buildings are massive, domineering structures.  Here it looks like a car port next to St. John the Divine.

IMG_1584

The orphanage in the 1860s, with hopefully soon-to-be-adopted children out front.  The east wing (right side) of the building was removed during the cathedral’s construction.

IMG_1401
Museum of the City of New York


Only the facade seems to be the same, and there’s been a lot of landscaping.  The west wing (left side) of the building is still there though.

IMG_0955

Now let’s focus on the roads. Here’s a close up of the narrow lane coming off the Bloomingdale Road. Locally, Columbia students call the old road “Asylum Lane.”  It makes sense, the road ends equidistant between the two asylums.  The reason students are familiar with it is because it left its mark on buildings constructed along its path.

Final 4

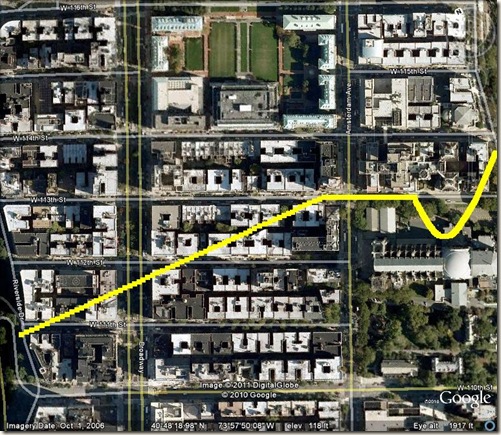

There are four circles in the image below (they’re very light), and a line showing the path of Asylum Lane.  Two circles indicate Macy Villa (nearby its original location) and the Leake and Watts orphanage.  The other two circles are on the path of Asylum Lane, showing buildings with walls built at angles as a result of the old street!

1i

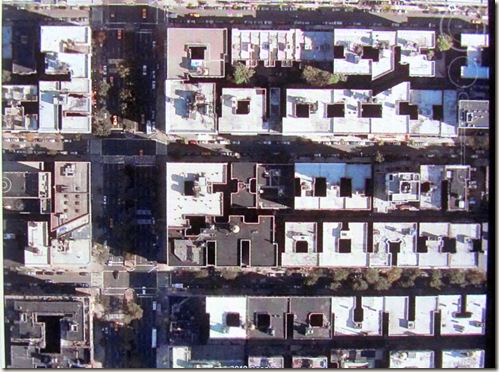

Here’s a close-up showing Broadway and 111th-113th Streets.

Asylum Lane palimpsest2

And if you really can’t see them…

Asylum Lane palimpsest2b

The buildings themselves were not necessarily built on Asylum Lane; they may have been built alongside older buildings that were, and so had to follow the walls of the those buildings. It's an artifact, a manifestation of the palimpsest, and it can get passed down through generations of buildings. (Another example of the city-as-palimpsest can be found in first post, Ghost of the Broadway Central, it’s short).

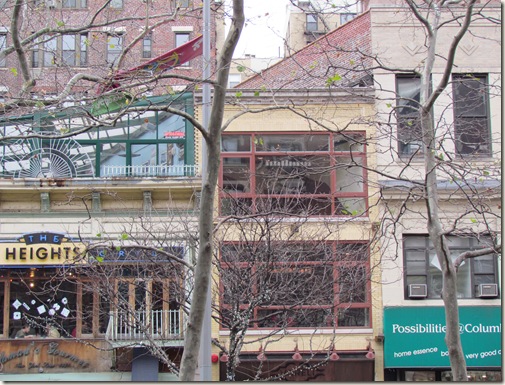

Here’s a street view of those buildings on the west side of Broadway, just north of 111th Street.  Only the middle building has both walls with the Asylum Lane angle.  Asylum Lane would have passed to the right, by the teal awning.

IMG_0940

The building to the south (left, above) is the Heights Bar and Grill. It has a great rooftop bar and shares one angled wall with its neighbor to the north.

IMG_0935

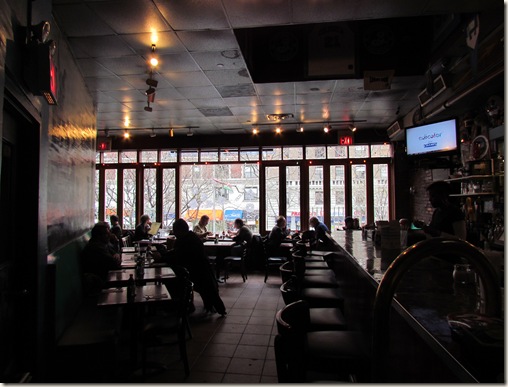

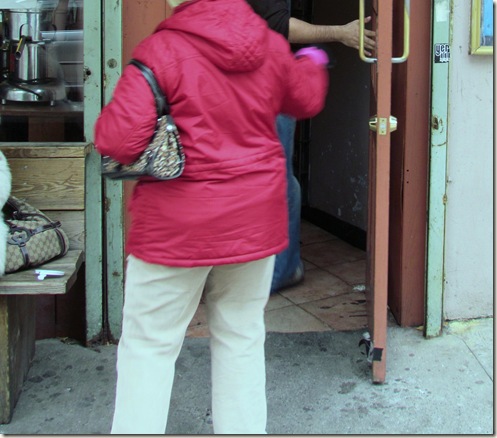

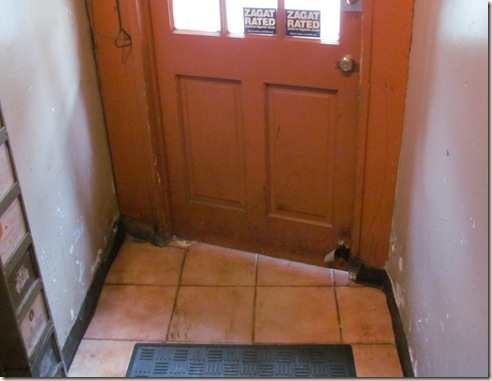

The door is straight.  But the walls and the tile floor point to the area between the orphanage and insane asylum.

IMG_0937
IMG_0938ii

I find it fascinating that in 2011 an interior space can still be determined by an old road from the asylum days of the 1800s.  And in fact, the road is much older than that!

IMG_0936

In 1701 Jacob de Key bought nearly the entire Morningside Heights plateau from the city.  In 1735 Thomas Key (an heir apparently) sold the plateau in two chunks: the Hudson (western) side to Adrian Hoaglandt, and the eastern side overlooking the Harlem Plains to Harmon Vandewater.  In the 1700s the plateau was known as Vandewater Heights.  Thus, the chain is: Vandewater Heights (1700s)-Bloomingdale Heights (1800s)-Morningside Heights (1900s).

With all of its years of rural tranquility, Vandewater Heights did see one brief flash of spectacular violence with the Battle of Harlem Heights, a small but important morale-boosting victory for the Continental Army. The first (and just about only) time the Redcoats were sent in a retreat.  Here’s a plaque affixed to the Mathematics building on Columbia’s campus to honor the battle in 1776—55 years before the insane asylum moved to the plateau, when Hoaglandt and Vandewater were the main tenants.

IMG_0564

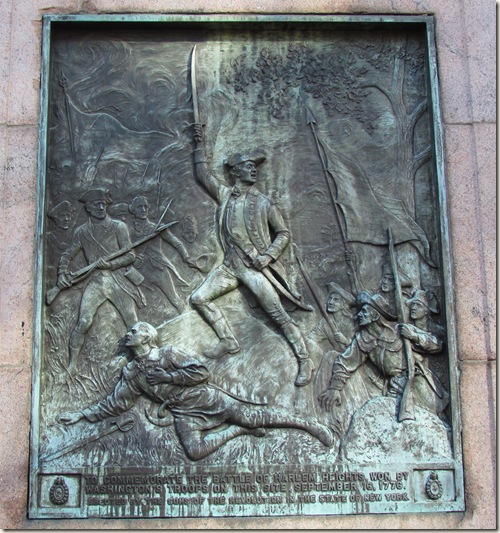

The plaque reads: “To Commemorate the Battle of Harlem Heights, Won By Washington’s Troops On This Site, September 16, 1776.  Erected By the Sons of the Revolution in the State of New York.”   Because they’re interesting, here’s an enlargement of the medallions in the lower corners:

   IMG_0566 IMG_0565

And here’s a map of the battlefield, drawn by Henry Phelps Johnston, 1897.

battle of harlem heights
Courtesy of the Columbia University Press

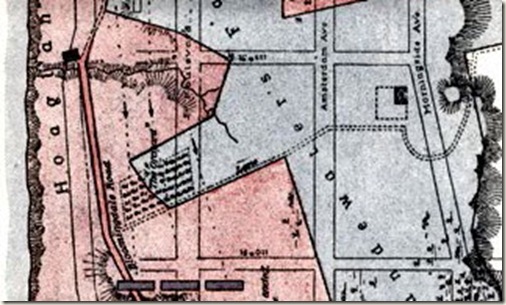

The Vandewater property is in grey and the Hoaglandt property in pink.  In 1776 the Bloomingdale Road still ended at 114th Street (see where the solid road ends and the dotted road begins—at the bend in the road at 115th Street).  Here’s a close-up of the area we’re interested in…

battle of harlem heightsiii

The black square at the end of the old Bloomingdale Road, and across the river, was the Hoaglandt home since 1735.  Vandewater had also been on the plateau since 1735, but at the time his property didn’t border the Bloomingdale Road.  Harmon Vandewater built “Asylum Lane” along his property line to access the Bloomingdale Road.  (Johnston’s map simply marks it as “Lane.”) Also, it extended in the other direction, towards the park, leading to a path down the cliffs!

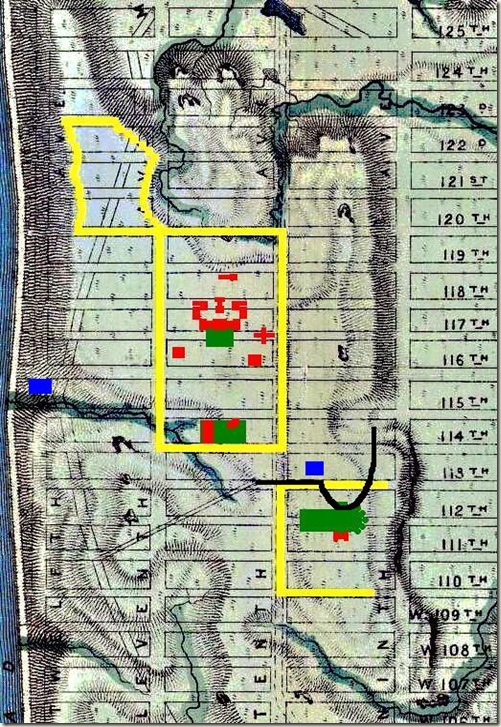

Here’s the map once again, with the blue indicating the Hoaglandt and Vandewater homes, and the full extent of Vandewater’s road leading to Morningside Park.

Final 3

One more piece of evidence. In 1784, at the end of the Revolution, Nicholas de Peyster bought the Hoaglandt property, and a year later his brother James de Peyster bought the Vandewater side.

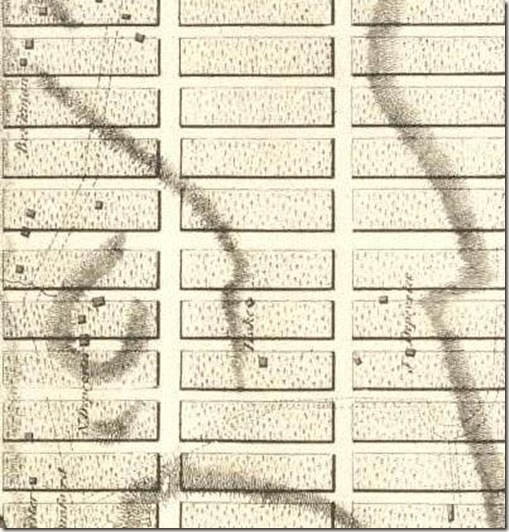

Here’s the area again, now from the Commissioner’s Plan of 1811. It was ten years before the insane asylum came; still farmland, but now owned by the Peyster brothers.  You can clearly make out the old Vandewater road, along with another connection leading downtown.  See it on the bottom right?

comm pla12

Here’s an approximation of the road as it would appear on today’s grid.

asylum lane aii

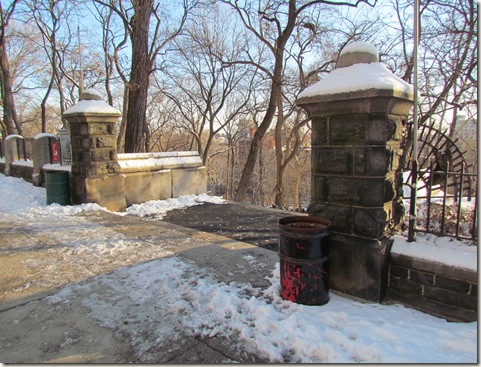

There are actually three entrances to Morningside Park that could possibly be the old path that led down the cliffs.  If indeed any of today’s entrances are the old path, my best guess would be this one, at 114th Street.

IMG_1611

One last piece of cool history, over near the Hoaglandt house.  It seems choice sites were recycled through history.  This passage is from the book New York of Yesterday, by Hopper Striker Mott, 1908…

carrigan
It was still standing when that was written in 1908, but only for another 4 years.  It was torn down in 1912 to build the Hamilton, an apartment building.

But this country estate built for the president of Emigrant Savings Bank was contemporary with the asylums. From 1840 – 1912, the Carrigan mansion stood at that bend in the road on 115th Street.  Its Greek Revival architecture was the same style as the orphanage, built just three years later in 1843—the style of the period.  If it were standing today it would be 50 years older than Macy Villa.

1153a Courtesy of New York Public Library

And it sat like a time capsule amongst the middle class apartment buildings of Morningside Heights until 1912.

115ab
Courtesy of New York Public Library

Here's the Hamilton today (those are the same buildings on the right as the picture above).

 IMG_1568

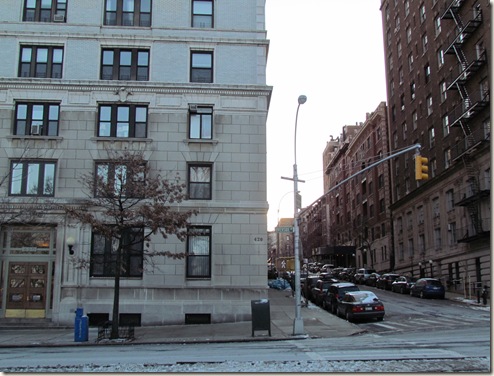

And the Hamilton sits just east of the crook in the old Bloomingdale Road, between 114th and 115th Street, where the river once ran through.

IMG_1570
